Diesel Engine-Driven Constant Current Welding Generator 500AMP
-Model: DX500E
-Engine: DEUTZ
F3L912(Air Cooled Diesel)
-Rated
Output: 29KW
-Rated
Speed: 1850
Rpm/ 60HZ
-Cooling
System: Air
Cooling Environmental Conditions
-Dimensions: (L)1525mm x (W)760mm x (H)1060mm
-Weight: 860kg
_____Multi Operator Digital Power Source With Power Supply Distribution Station_____
________________________________________________________________________
Multi Operator Mark IV Digital Power Source With Power Supply Distribution Station
-Model: Mark IV
-Input Voltage: 415V 3P 50Hz
-Rated Current: 500AMP @35%
-Input Power: 70 KVA
-Input AMP: 96 AMP
-AMP. Range: 20-420 (lock)
-Output Voltage: 36V
-O.C.V: 72V
-Efficiency: IP23
-Duty Cycle: 60% @420AMP
-Weight: 202kg
-Dimension (L x W x H): 1005mm x 745mm x 1315mm
-Input Voltage: 415V 3P 50Hz
-Rated Current: 500AMP @35%
-Input Power: 70 KVA
-Input AMP: 96 AMP
-AMP. Range: 20-420 (lock)
-Output Voltage: 36V
-O.C.V: 72V
-Efficiency: IP23
-Duty Cycle: 60% @420AMP
-Weight: 202kg
-Dimension (L x W x H): 1005mm x 745mm x 1315mm
Multi Operator Mark VI Digital Power Source With Power Supply Distribution Station
-Model: Mark VI
-Input Voltage: 415V 3P 50Hz
-Rated Current: 500AMP @35%
-Input Power: 106 KVA
-Input AMP: 144 AMP
-AMP. Range: 20-420 (lock)
-Output Voltage: 36V
-O.C.V: 72V
-Efficiency: IP23
-Duty Cycle: 60% @420AMP
-Weight: 467kg
-Dimension (L x W x H): 1100mm x 1102mm x 1362mm
-Input Voltage: 415V 3P 50Hz
-Rated Current: 500AMP @35%
-Input Power: 106 KVA
-Input AMP: 144 AMP
-AMP. Range: 20-420 (lock)
-Output Voltage: 36V
-O.C.V: 72V
-Efficiency: IP23
-Duty Cycle: 60% @420AMP
-Weight: 467kg
-Dimension (L x W x H): 1100mm x 1102mm x 1362mm
Power Supply Distribution Station Multi Purpose Distribution Board
-Model: DB5-6
-FRONT VIEW: Double protection for the panel control to increase the lifetime 5-10times to meet the requirement of IP66 for the waterproof type. Positive & Negative output terminal with quick connector coupler type to satisfy the welder requestment.
-BACK VIEW: Double door with double protection for circuit protection device to meet requirement of IP66 for waterproof type.
-FRONT VIEW: Double protection for the panel control to increase the lifetime 5-10times to meet the requirement of IP66 for the waterproof type. Positive & Negative output terminal with quick connector coupler type to satisfy the welder requestment.
-BACK VIEW: Double door with double protection for circuit protection device to meet requirement of IP66 for waterproof type.
_______________________Portable Oven_________________________
_____________________________________________________________
Portable Electrode Quiver
-Model : Type 5 (New Series) / Type 10 (New Series)
-Capacity : 5Kg / 10Kg
-Temperature : 279°F(150°C) / 279°F (150°C)
-Voltage : 240V AC / 90V DC
-Material : Internal Mild Steel
-Capacity : 5Kg / 10Kg
-Temperature : 279°F(150°C) / 279°F (150°C)
-Voltage : 240V AC / 90V DC
-Material : Internal Mild Steel
Portable Electrode Quiver
-Model : Type 5 / Type 10
-Capacity : 5Kg / 10Kg
-Temperature : 279°F(150°C) / 279°F(150°C)
-Voltage : 240V AC / 90V DC
-Material : Internal Mild Steel
-Capacity : 5Kg / 10Kg
-Temperature : 279°F(150°C) / 279°F(150°C)
-Voltage : 240V AC / 90V DC
-Material : Internal Mild Steel
Portable Electrode Quiver
-Model : Type 5 (SS) / Type 10 (SS)
-Capacity : 5Kg / 10Kg
-Temperature : 279°F(150°C) / 279°F(150°C)
-Voltage : 240V AC / 90V DC
-Material : Internal Stainless Steel
-Capacity : 5Kg / 10Kg
-Temperature : 279°F(150°C) / 279°F(150°C)
-Voltage : 240V AC / 90V DC
-Material : Internal Stainless Steel
Portable Electrode Quiver
-Model: Type 10 (D)
-Capacity: 10Kg
-Temperature: 100°F - 300°F / 38°C - 149°C
-Thermometer: Digital Display
-Voltage: 240V AC
-Material: Mild Steel
-Capacity: 10Kg
-Temperature: 100°F - 300°F / 38°C - 149°C
-Thermometer: Digital Display
-Voltage: 240V AC
-Material: Mild Steel
Portable Electrode Quiver
-Model: Type 50
-Capacity: 22.7Kg (50lbs)
-Temperature: 279°F(150°C)
-Voltage: 240V AC
-Material: Mild Steel
-Capacity: 22.7Kg (50lbs)
-Temperature: 279°F(150°C)
-Voltage: 240V AC
-Material: Mild Steel

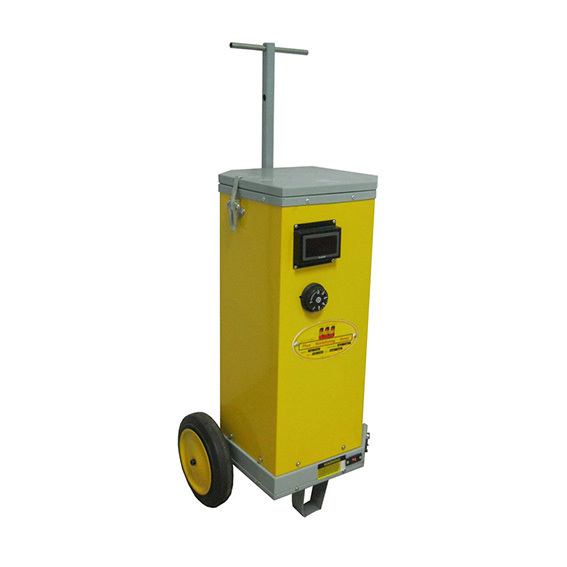

Portable Electrode Quiver
-Model: Type 50 (SHD)
-Capacity: 25kg (50lbs)
-Temperature: 100°F - 300°F / 38°C - 149°C
-Thermometer: Digital Display
-Voltage: 240V AC
-Material: Mild Steel
-With Temperature Control c/w Digital Thermometer & Trolley
-Capacity: 25kg (50lbs)
-Temperature: 100°F - 300°F / 38°C - 149°C
-Thermometer: Digital Display
-Voltage: 240V AC
-Material: Mild Steel
-With Temperature Control c/w Digital Thermometer & Trolley
